Lemon Unit

First aid station LEMON-Unit - without lighting

The LEMON unit from meng brings together all the aids and information required in occupational safety in one place. A convincing concept for occupational safety.

• Dimensions:
  - Total 1,950 x 700 x 400 mm (H x W x D)
  - Open height 925 mm, base unit 800 mm high, plinth area 100 mm high.
  - integrated worktop 390 x 640 mm (L x W).
• consisting of:
  - Housing made of sheet steel and aluminium
  - Base unit as storage compartment with 2 hinged doors, rotary handle, safety lock and 2 keys
  - 2 adjustable shelves in the base cabinet
  - Open cupboard compartment above with 9 interchangeable tiles in DIN A4 format, of which:

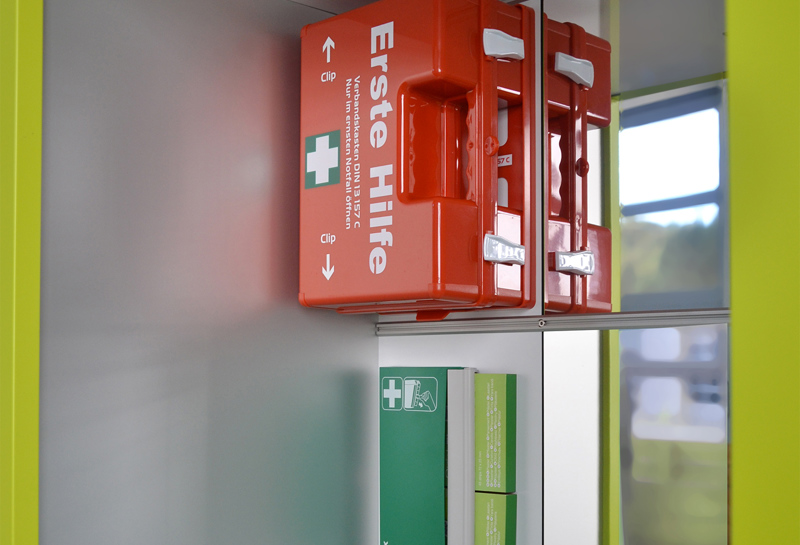

  1 with sealed first aid kit in accordance with DIN 13 157C
  1 tile with plaster dispenser box with initial filling
  3 tiles made of anti-reflective acrylic glass for on-site insertion of notices
  2 tiles as mirrors, e.g. for finding foreign bodies in the eye
  1 tile with secure box for inserting emergency documents
  1 tile for customised placement (on site),
  - 1 flush-mounted worktop made of hygienic 4 mm toughened safety glass with deposited first aid rules
  - 1 side compartment for UVV manual and BG first aid book
• Colour scheme:
  - Housing RAL 100 80 80 green-yellow powder-coated
• Labelling on head panel:
  - Labelling on three sides with white high-performance film and "First aid" pictogram
• Delivered assembled on a pallet ready for installation.
